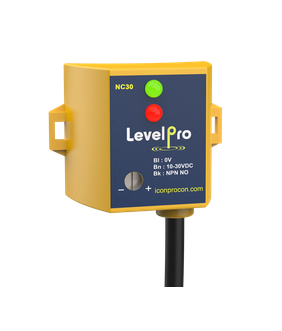

NC-30 Level Switch
Icon Process Controls

NC-30 Level Switch

  • All Plastic PP Design
  • Non-Intrusive Liquid Level, Flow Detection through Plastic or Fiberglass Walls
  • Easy Install
  • LED Display
  • M12 Disconnect or Fixed Cable Connector
  • Measure up to 2″ Pipe Diameter – PVC,CPVC Sch 40, 80, SDR 11
  • Senses up to 0.3″ (8mm) Wall Thickness

The NC30 Non-Contact liquid Level | Flow Switch has been designed using high frequency technology to sense the presence of liquid | conductive | non conductive. Suitable for Non-Metallic Tubing | Tanks | Drums | Pipes.

Features:

All Plastic PP Design
Non-Intrusive Liquid Level / Flow Detection through Plastic or Fiberglass Walls
Easy Install
LED Display
M12 Disconnect or Fixed Cable Connector
Measure up to 2″ Pipe Diameter – PVC,CPVC Sch 40, 80, SDR 11
Senses up to 0.3″ (8mm) Wall Thickness

Technical Datsheet
