Level Electronic

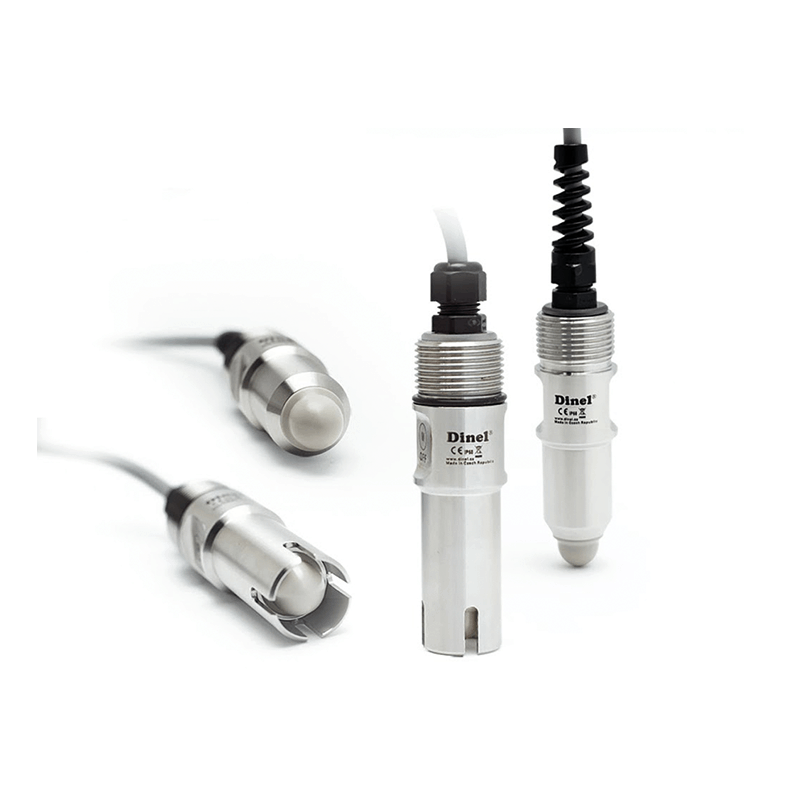

- High frequency limit level sensors
- For reliable limit level sensing of a variety of fluids
- ‘Medium Window’ function
- High stability at high sensitivity
- Adjustment with the magnetic pen
- Max output 300mA

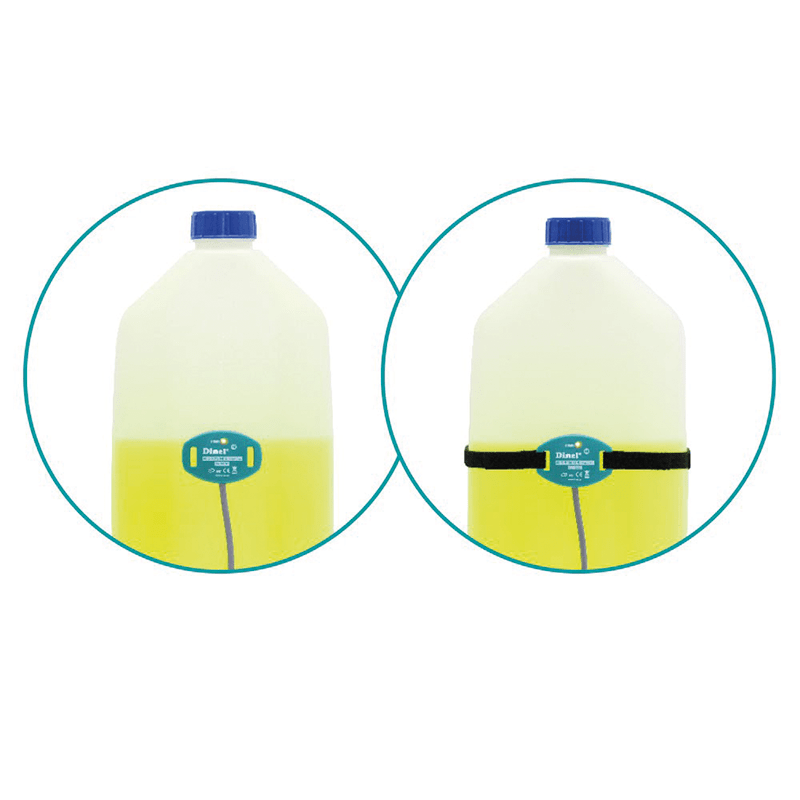

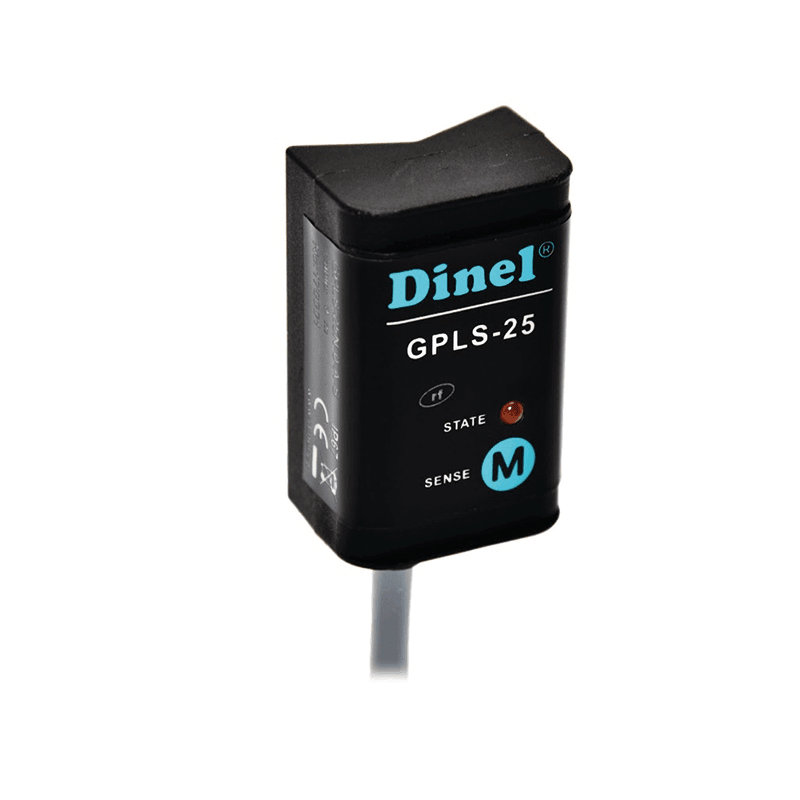

- Level Sensing through 8mm Glass/Plastic
- 2 or 3 Wire Connections
- Simple Setup in Miniature Form Switch
- Max Switching Current 40mA(PNP 100mA)
- Temperature range of -20 to 80 °C
- IP67 Rated
- For limit level sensing of liquid, and bulk-solid and powder materials
- Universal using (bulk solids, liquids, aggressive materials, petroleum products etc.)
- Direct mounting into various containers, silos, vessels, tanks, filling inlets, reservoirs, etc.
- Sensitivity and hysteresis fluently adjustable
- Output types NPN, PNP, NAMUR

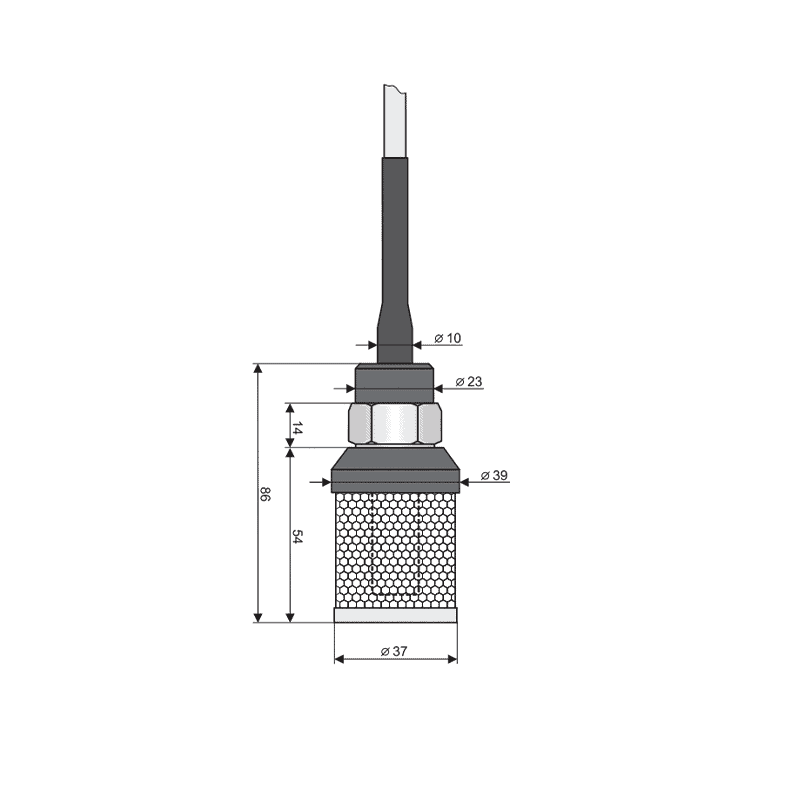

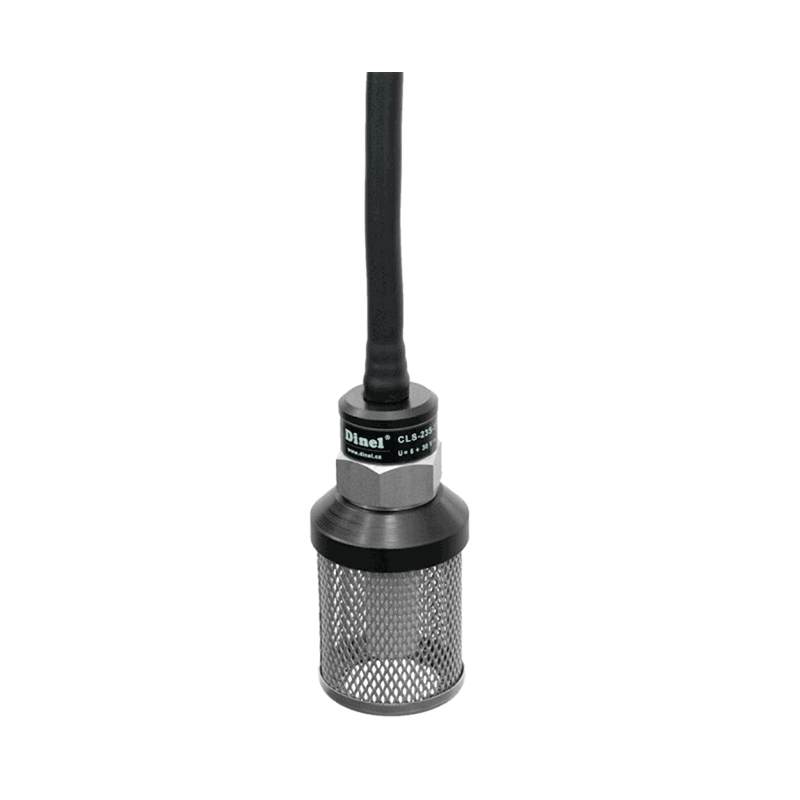

- Level Detection for Wells / Boreholes
- Maximum Immersion Depth 100m
- 2 Wire Output to Relay or Control Unit
- 2m Cable (Longer Available)
- Stainless Steel Removable Basket
- IP68 Protection

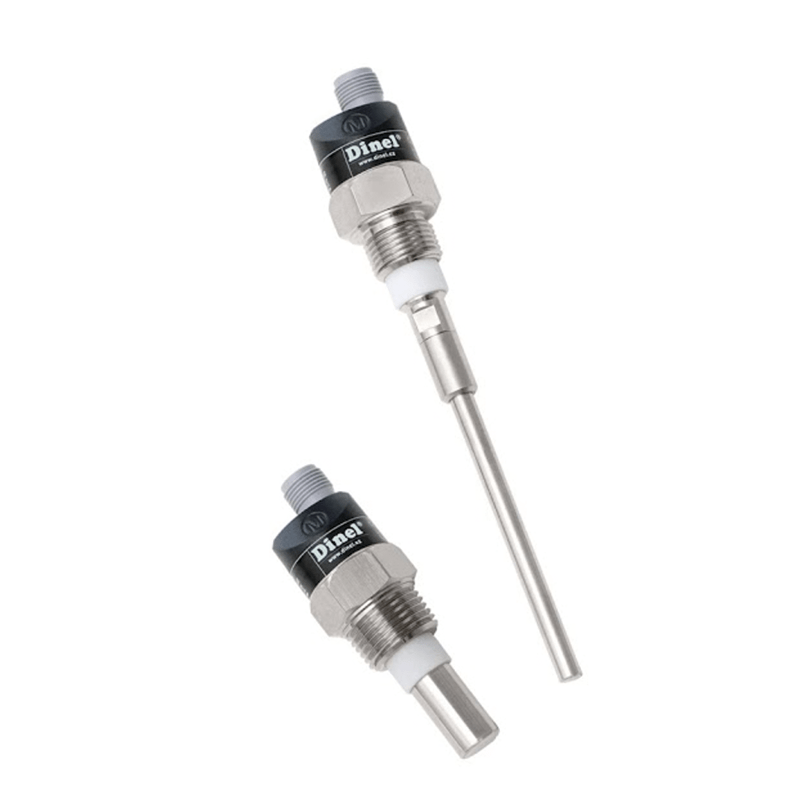

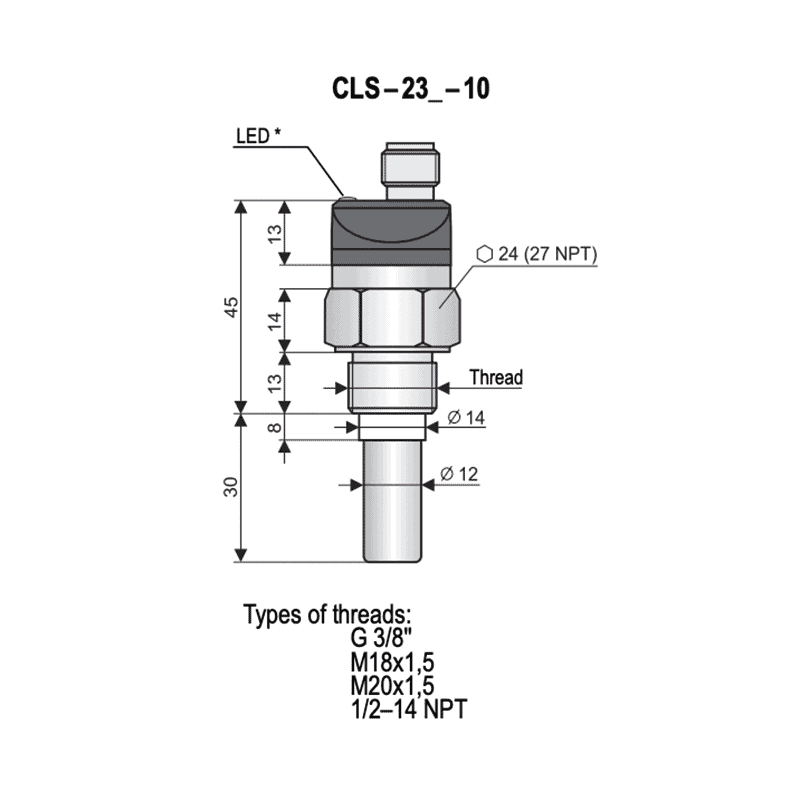

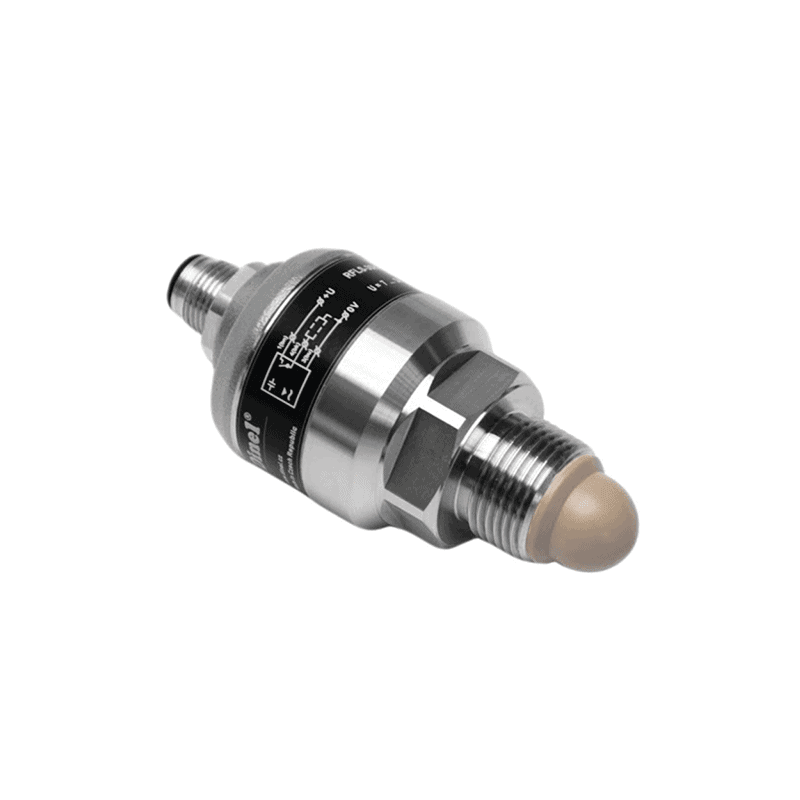

- Limit Level Sensor for Various Liquids
- Conductive / Non-Conductive Fluids
- Suitable for High Temperatures
- 1/2” BSP thread (Others Available)
- Easily Adjustable Sensitivity
- ATEX versions available
- Variants of adjustment by two buttons or by magnetic pen
- Wide range of electric connections
- Additional horn adaptor to improve the measurement of unusual media
- ATEX versions available
- Limit Level Sensor for Viscous Liquids
- Resistant to Adhesion of Sticky Media
- Conductive / Non-Conductive Fluids
- 1/2” BSP thread
- Media Recognition Settings
- Highly Sensitive and Reliable

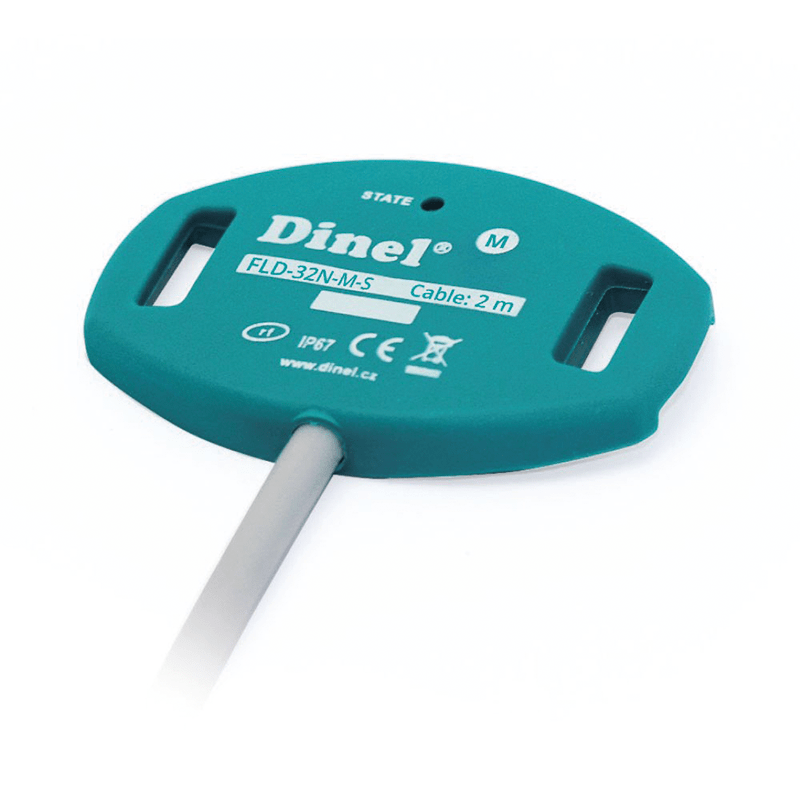

- Supply voltage: 6 ... 30 V DC
- Current consumption (idle-circuit condition): max. 0.6 mA
- Switched current (min. / max.): 3.3 / 40 mA
- Residual voltage in the closed state: max. 6 V
- Max. switching frequency: 1 Hz
- Ambient temperature range: -20 ... +70 °C
- Diameter of the vessel for the attachment of the sensor: min. 300 mm
- Protection class IP 67
- Housing material: polyurethane
- Type of connection cable: PUR 3 x 0.14 mm2
- Weight (including 2m cable): about 40 g
- Weight (without cable): 10 g

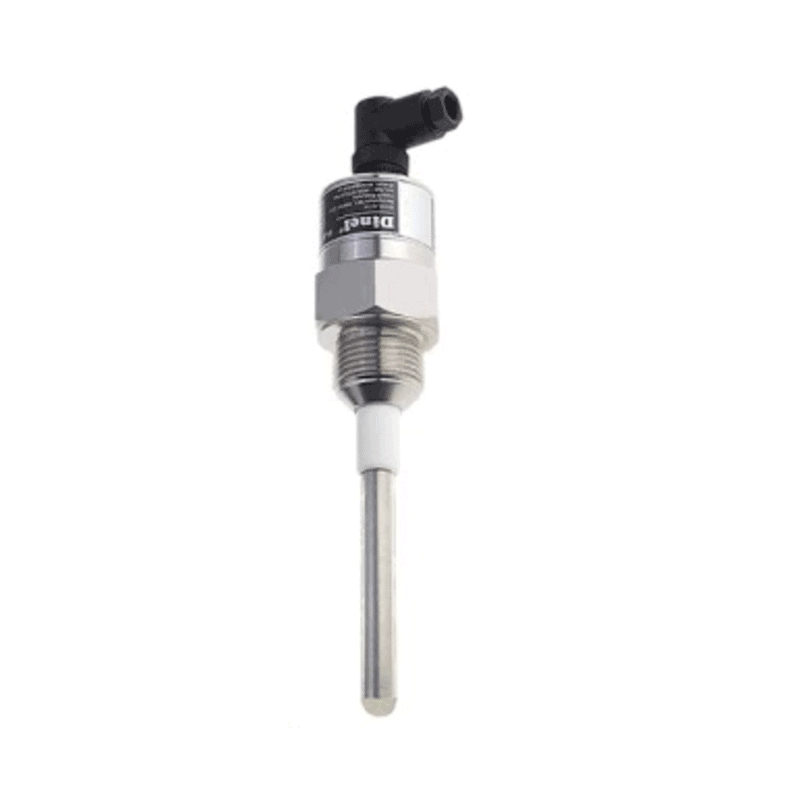

- Universal use for limit level sensing of liquids and bulk solids
- Direct mounting into tanks, vessels, sumps and tubes or silos and hoppers
- Setting using a magnetic pen
- Mode for quick sensor setting without the presence of medium
- Optical indication by two LEDs
- Wide selection of connections: connector or cable glands
- Housing, electrodes and reference tubes made from stainless steel
- High stability upon high sensitivity (possible to use for materials with εr ≥ 1.3)

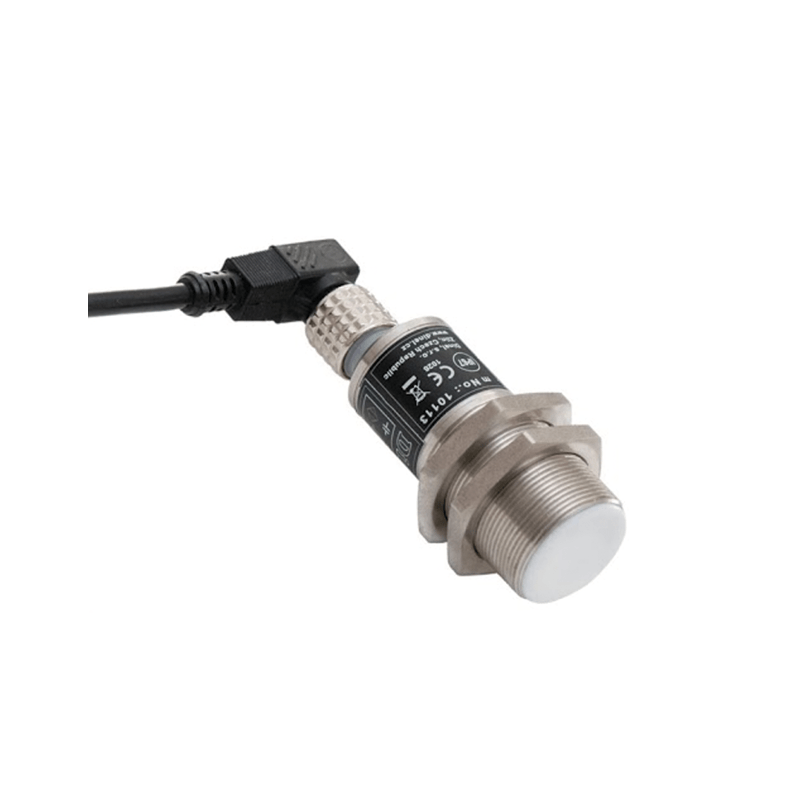

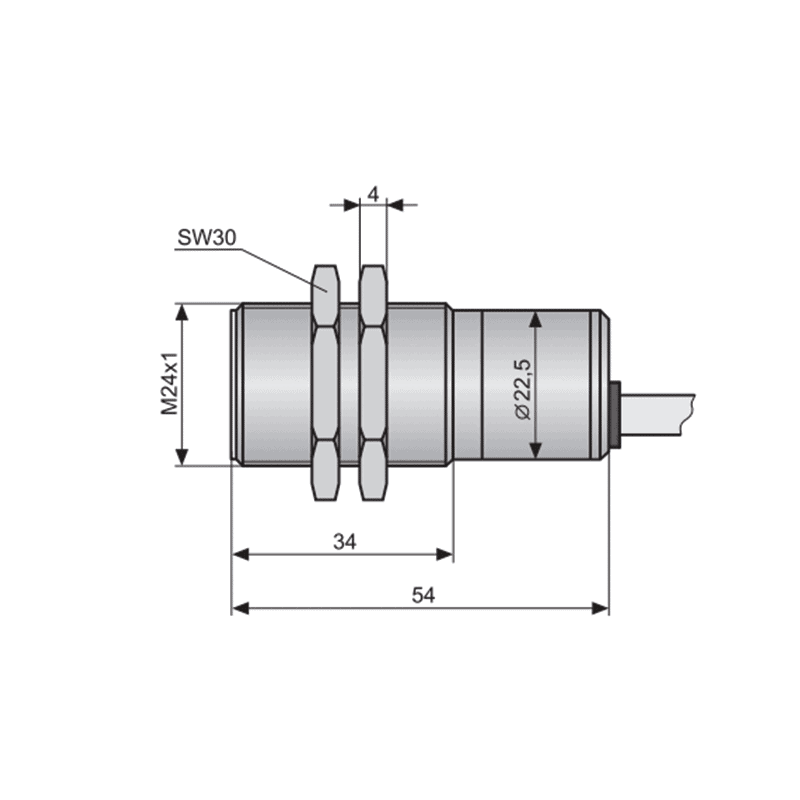

- Detect liquids in glass or plastic pipes, indicate liquids in inter-coat space of double coated tanks
- Adjustable sensitivity
- NPN, PNP or NAMUR output
- Material of housing and nut from stainless steel
- Version for usage in explosive areas
- LED state indication
