- Robust design, integrated scraper
- Extension of sensor-lifetime and reducing of maintenance efforts
- Automatic safety lock while sensor is removed
- Plug and play installation, colour- and size-coded connection system
- Integrated limit switches
- Usable in ATEX-areas
- Immersion length up to 207mm

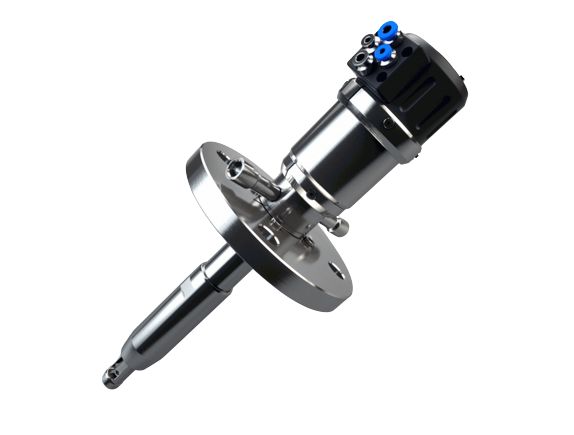

Extract 811 is a pneumatically operated retractable probe housing to be attached on process tanks or tubing with an extended immersion length up to 207mm. The drive unit inserts the sensor into the process medium and back into the cleaning chamber. When reaching the final position of “measuring” or “service”, the probe housing responds automatically by a pneumatic position signal. Cleaning, rinsing and calibration of the sensor is possible while the process is running.
