EXNER
EXstatic 315
- Designed according to hygienic criteria
- Surface finish Ra<0,78 or Ra<0,37
- Stainless steel AISI 316L / 1.4404
- EPDM sealings with FDA and USP VI approval
- Design process connections according to EHEDG / 3A
- Up to 10 bar and 140 °C
- Protection cap for cable connection
- 15° angled process connection
£0.00
In Stock
Sold out
- Description
- Downloads
Description

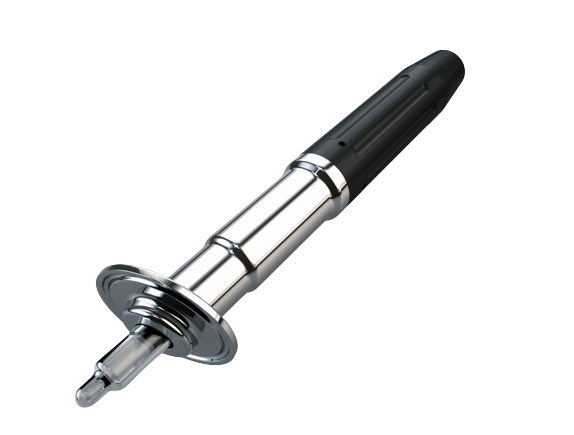

EXstatic 315 is a static probe housing with 15° angled process connection for permanent installation of Ø12mm/120mm-sensors on tanks or pipelines. TriClamp and hygienic process connections like Varivent and Neumo BioControl are available. EXstatic315 probe housings are very easy to install and the used sensor is very well accommodated and protected.
Downloads
